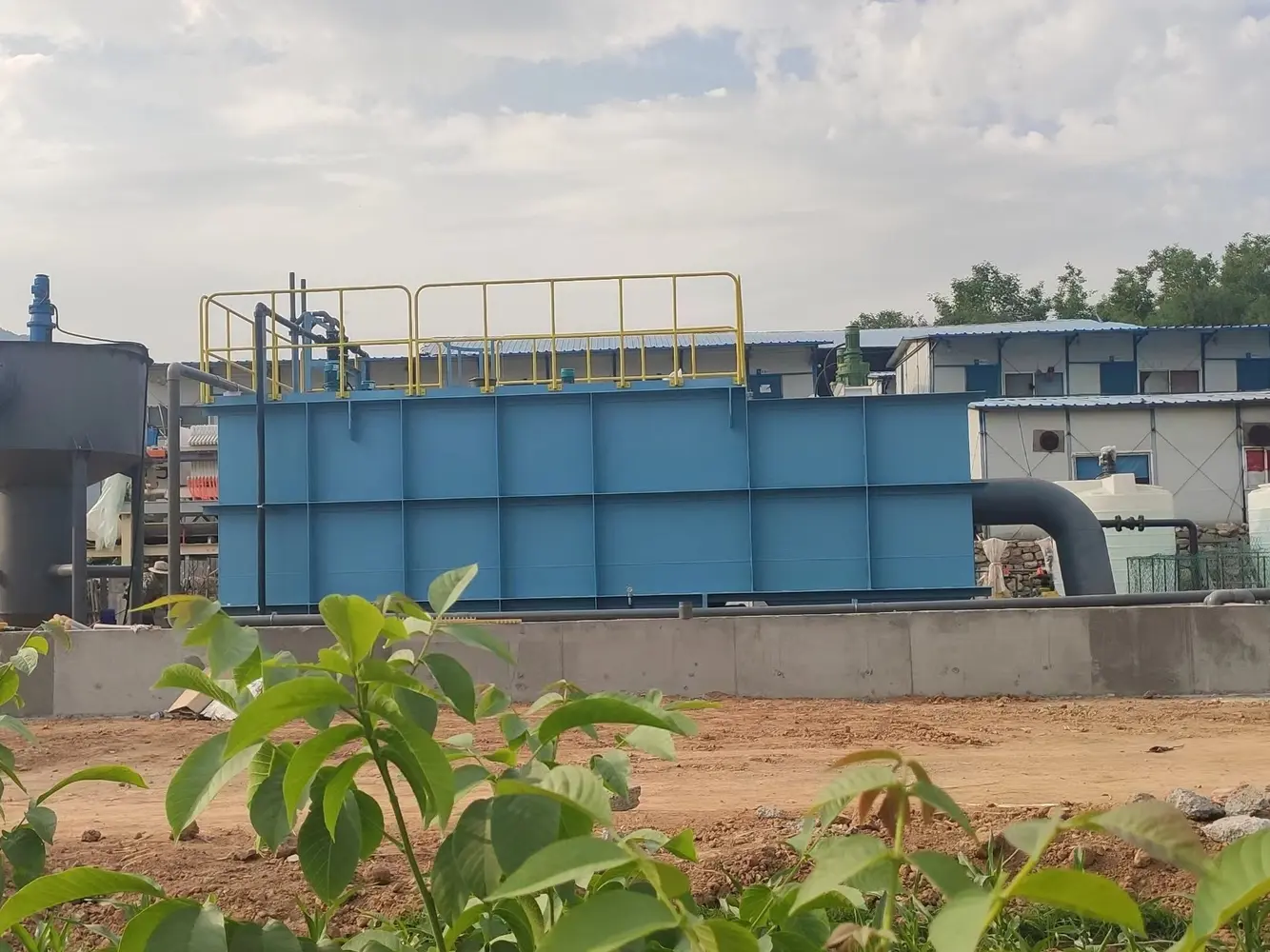

Microsand-Ballasted Sedimentation: A High-Efficiency Solid-Liquid Separation Technology That Increases Settling Velocity by Tens of Times

I. Why Conventional Sedimentation "Can't Keep Up"

Floc settling follows Stokes' law: to increase settling velocity, there are only two engineeringly feasible approaches: increase particle size ddd, or increase particle density ρp\rho_pρp​.

Flocs formed by conventional coagulation have a loose structure and high water content, with a wet density of only about 1.002–1.02 g/cm³. Their particle size is mostly in the tens of micrometers range, and they are highly susceptible to breakage after passing through pumps or free-fall drops. The actual settling velocity is typically only 1–5 m/h. This is the fundamental reason why conventional sedimentation tanks must "trade area for speed."

The approach of the microsand-ballasted sedimentation tank is very direct: quartz microsand with a density of 2.65 g/cm³ (effective particle size 60–150 μm) is embedded as a "seed core" within the floc, forming composite particles known in the industry as "ballasted flocs." The wet density of the composite particles can be increased to 1.3–2.0 g/cm³, and the equivalent settling velocity is raised to 40–120 m/h, enabling effective capture by inclined tubes even at extremely high upflow velocities.

Comparison item Conventional coagulation floc Ballasted floc Wet density (g/cm³) 1.002–1.02 1.3–2.0 Equivalent particle size (μm) 20–80 100–300 Settling velocity (m/h) 1–5 40–120 Shear resistance Weak Strong (microsand provides skeletal support)

II. Process Flow: Five-Stage Closed-Loop Operation

The microsand-ballasted sedimentation tank consists of a closed loop comprising "coagulation → ripening (microsand flocculation) → inclined-tube sedimentation → microsand recovery → recirculation," with microsand circulating within the system and only minimal losses being replenished.

① Coagulation Zone Influent is rapidly mixed with inorganic coagulants (PAC / aluminum sulfate / ferric chloride), with dosing points located before the tank or on the influent pipe mixer. Rapid mixing G value is 300–600 s⁻¹, with a retention time of 1–2 min, completing colloidal destabilization.

② Ripening / Flocculation Zone Polymer flocculant (anionic PAM, dosage 0.5–2 mg/L) is dosed, while high-concentration recovered microsand slurry is injected simultaneously. Slow mixing G value is 50–100 s⁻¹, with a retention time of 5–8 min. Microsand is "bridged" and encapsulated into the interior of flocs by the long chains of PAM, forming dense ballasted flocs.

③ Lamella Settling Zone Ballasted flocs enter the inclined-tube (honeycomb inclined tube, 60° inclination angle, inscribed circle diameter 50–80 mm) separation zone, and the supernatant is collected via effluent weirs. The surface loading rate in this zone is 30–80 m³/(m²·h), which is the source of the process's footprint advantage.

④ Microsand Recovery System (Hydrocyclone) The settled sand-containing sludge is collected by a scraper and pumped to a hydrocyclone. The cyclone uses centrifugal force to fling the high-density microsand toward the wall for discharge from the underflow (recovery typically >95%), while low-density lightweight organic sludge is discharged from the overflow.

⑤ Recirculation and Discharge The underflow microsand slurry is recirculated to the ripening zone for reuse; the overflow excess sludge is sent to the sludge treatment system. Microsand losses are replenished by an automatic sand dosing device according to consumption.

The closed loop is the core: microsand is not a consumable but a "carrier." After initial filling, it circulates long-term, with only small losses from incomplete cyclone separation and wear being replenished. This is the key to controllable operating costs.

III. Key Technical Parameters at a Glance

Parameter Design Value (Engineering Experience Range) Remarks Inclined-tube zone surface loading rate 30–80 m³/(m²·h) (peak can briefly reach 100) Core indicator, must be determined by water quality testing Total hydraulic retention time 10–15 min Including coagulation + ripening + sedimentation, far lower than conventional processes Microsand effective particle size 60–150 μm (commonly 80–120 μm) Quartz sand, good roundness, wear-resistant Microsand concentration in system 2–5 g/L (based on ripening zone) Affects floc density and settling velocity Sludge recirculation ratio 3%–8% (relative to influent flow) Recirculated slurry has high sand concentration, volumetric flow is not large Microsand make-up 1–3 g/m³ influent Depends on cyclone recovery and wear Coagulant (PAC) dosage 30–80 mg/L (commercial product) Determined by SS and TP targets PAM dosage 0.5–2 mg/L Anionic type, molecular weight 8–15 million Power consumption 0.03–0.06 kWh/m³ Including mixing, sludge pumps, sand make-up, and control systems Effluent SS ≤10 mg/L (typically 5–8 mg/L) Under influent SS 200–400 mg/L Effluent TP ≤0.3 mg/L (advanced phosphorus removal can be ≤0.05 mg/L) Requires simultaneous chemical phosphorus removal Start-up time 10–20 min to achieve compliant effluent One reason for strong shock resistance

The above are engineering experience ranges. Specific projects must determine chemical types, dosages, and surface loading rates through jar tests or pilot tests. The values in this article are only for estimation during the planning stage.

IV. Horizontal Comparison with Conventional Sedimentation Processes

Process Type Surface Loading Rate m³/(m²·h) Total HRT Relative Footprint Shock Load Resistance Start-up Time Typical Application Horizontal/radial primary sedimentation tank 1.5–3.0 1.5–2.0 h 100% (baseline) Moderate Several hours Conventional primary treatment Secondary clarifier (activated sludge) 0.6–1.5 2–4 h — Weak — Sludge-water separation High-density sedimentation tank (sludge recirculation + inclined tube) 10–25 15–25 min 15%–25% Relatively strong 30–60 min Advanced treatment, chemical phosphorus removal Microsand-ballasted sedimentation tank 30–80 10–15 min 5%–15% Strong 10–20 min Primary enhancement, advanced treatment, CSO/stormwater Magnetic coagulation sedimentation 20–40 8–12 min 8%–20% Strong 10–20 min Advanced phosphorus removal, SS upgrading Dissolved air flotation (DAF) 5–15 10–20 min 20%–30% Moderate 20–40 min Algae removal, low-density suspended solids

Advantages of microsand-ballasted sedimentation over magnetic coagulation: No need for magnetic separation units and magnetization/demagnetization systems for magnetic powder recovery; lower media unit price (quartz sand vs. magnetic powder); lower make-up cost after media loss; no concerns about magnetic powder residue affecting subsequent biological treatment or sludge disposal.

Advantages over high-density sedimentation tanks: Surface loading rate is 2–4 times higher, further compressing footprint; faster start-up and quicker response to flow and water quality fluctuations, particularly suitable for intermittent operation and rainy-season shock scenarios.

Conclusion

The value of the microsand-ballasted sedimentation tank lies not in being a "new concept" but in achieving great treatment flexibility with a very small footprint. Against the backdrop of limited space for upgrading existing wastewater treatment plants, rising demand for rainy-season overflow treatment, and continuously tightening industrial wastewater discharge standards, this type of "high-rate ballasted sedimentation" technology is transitioning from an optional solution to a standard configuration.

Of course, it is not a panacea. It is recommended to first conduct water quality tests, then determine the surface loading rate, and finally verify the full-process material balance, so that the technical advantages are built on verifiable engineering data.
